Product

Product Si Anode

Si Anode

Si Anode

Si/C Composite
Silicon-based anode active material, Si Anode

High capacity

About 10 times higher than the theoretical
amounts of Si (4,200 mAh/g) and graphite (372 mAh/g)
High efficiency

Increased efficiency achieved by mixing Si and graphite
Long life

Long life achieved through even carbon coating
Fast charge

Faster charge speed and higher energy density of silicon in comparison to graphite

Si active anode materials for 2^nd battery
5 ~ 20% to graphite-based anode materials
Complements the low output of graphite by adding silicon
Faster battery charging time and higher energy density compared to graphite

GP Series

Product	GP10E	GP13	GP13H	GP15	GP18
Capacity (mAh/g)	< 1,000	1,300	1,300	1,500	1,800
Particle Size (µm)	9.5	6.0	9.5	9.5	9.5

GP13H

cell

Capacity	1,300 ± 50 mAh/g
High initial efficiency (Half cell)	88 ~ 90%
Long-term cycle	92.3% @100Cycles

Material

Low-cost process	Low temp. &Eco-friendly
Particle size(D₅₀, µm)	9.5 ± 1.0µm
Tap density	1.0 ± 0.15g/cc
Surface area	< 10.0m²/g

GP15

cell

Capacity	1,500 ± 50 mAh/g
High initial efficiency (Half cell)	87 ~ 89%
Long-term cycle	90.2% @100Cycles

Material

Low-cost process	Low temp. &Eco-friendly
Particle size(D₅₀, µm)	9.5 ± 1.0µm
Tap density	1.0 ± 0.15g/cc
Surface area	< 10.0m²/g

GP18

cell

Capacity	1,800 ± 50 mAh/g
High initial efficiency (Half cell)	84 ~ 86%

Material

Low-cost process	Low temp. &Eco-friendly
Particle size(D₅₀, µm)	9.5 ± 1.0µm
Tap density	1.0 ± 0.15g/cc
Surface area	< 10.0m²/g

SEM

sem-1

sem-2

sem-3

sem-4

sem-5

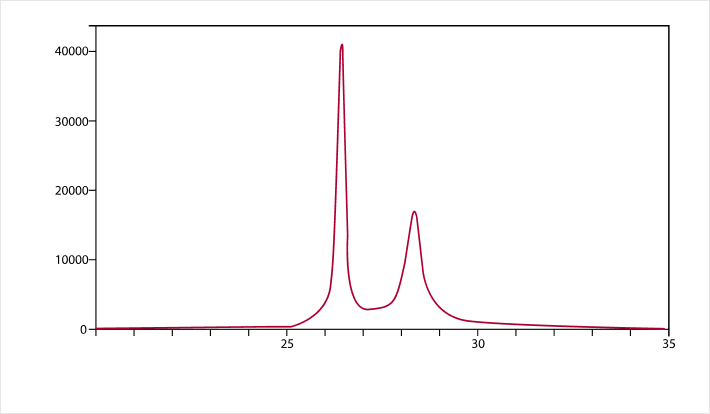

XRD

Silicon crystal size : 17 ± 1.0 ㎚

graph1

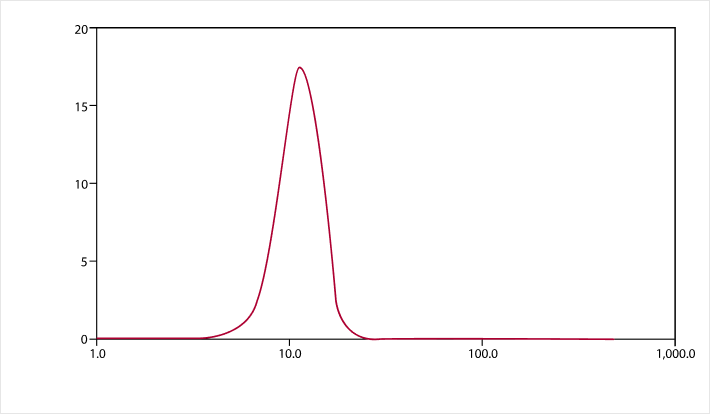

PSD

D₅₀ : 9.5 ± 1.0 ㎛

graph1

Cell Evaluation

GP13H

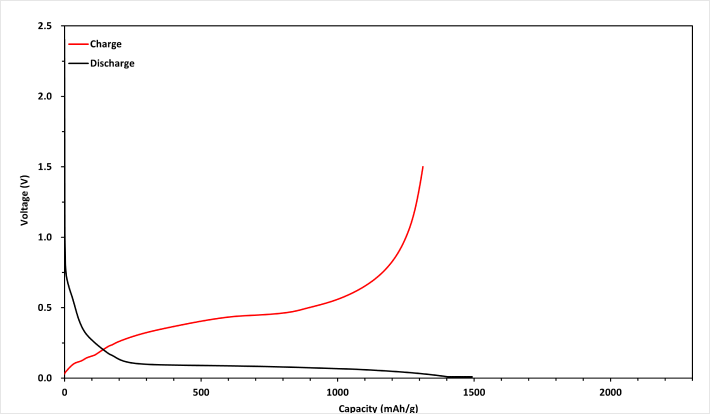

DATA-1(CV Curve)

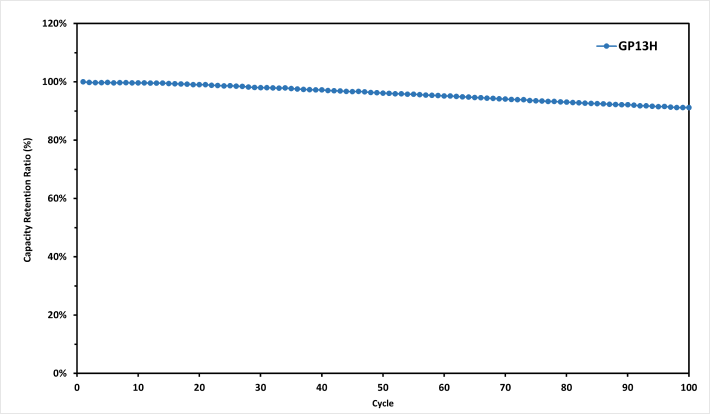

DATA-2(CRR)

GP13H Cycling test

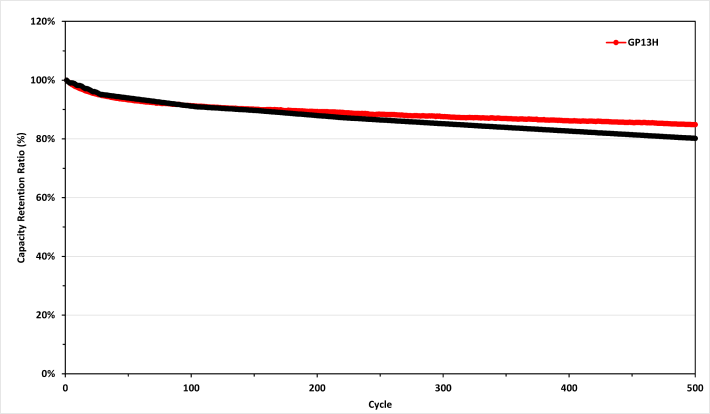

DATA-3

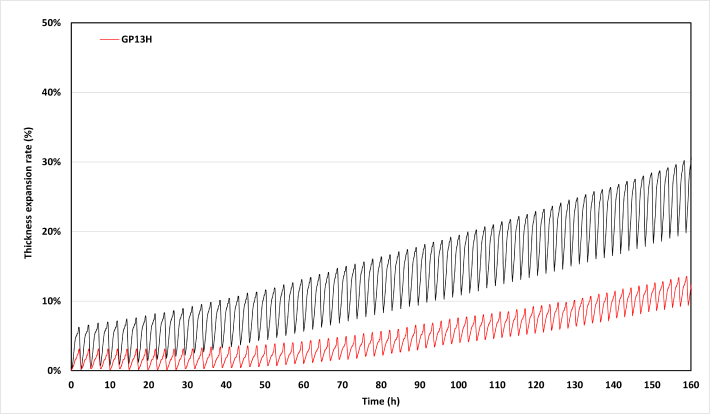

DATA-4
